HVAC Plasma Burning Tables
The VICON line of HVAC plasma cutting machines and liner-cutting systems are specifically designed and engineered to help shops like yours succeed in today's highly competitive environment.
VICON HVAC machines give you all the speed you need to meet ever-tighter deadlines without sacrificing reliability or accuracy. Truly the cutting edge of the industry, VICON machines give you a real competitive advantage, reducing material waste and operating costs, while enhancing productivity and profitability—as well as your reputation.

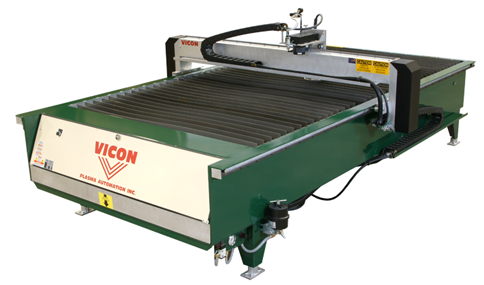

VICON Model HVAC 510 Plasma Cutting Table
Standard Sheet Metal Cutting System
This rugged yet flexible plasma cutting machine is the solution for the optimal processing of HVAC duct fittings. Fast, clean and accurate, this CNC cutting system drastically reduces waste material and operating costs resulting in greater profitability.
Exclusive dual rack and pinion drives provide superb positioning accuracy for unmatched part quality. Material stops guide the operator for loading sheets eliminating error and material waste.
Specifications
- Effective Cutting Area — 5'x10' (standard) / 6'x10' (optional)
- Material Capacity — 28 gauge to 1/2" thick plate
- Machine Length — 144"
- Machine Width — 90" (standard) / 102" (optional)
- Table Height — 35"

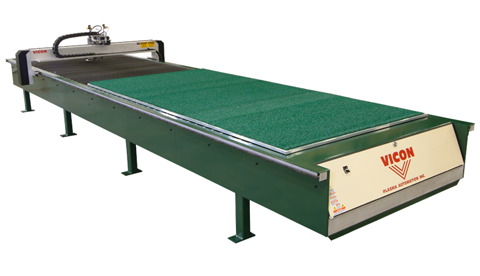

VICON Model HVAC 520 DL
Sheet Metal/Duct Liner Combination Cutting System
MAXIMIZE PROFITS!
IMPROVE WORKFLOW!
Versatility to the maximum! Cut metal or liner without any setup. Cut your metal on bed 1 and your liner on bed 2. You can also convert the machine to cut metal or liner on the entire 20 plus foot cutting area.
You can incerease your productivity by at least 40 percent with the VICON dual-table system. Finished parts are unloaded at one end of the machine while you continue cutting on the other, resulting in greater throughput, less downtime, and faster job completion.
VICON Liner cutting systems save considerable time and cost by eliminating labor-intensive manual liner cutting. The new VICON patented process automates duct liner cutting, making it clean, dry, fast, smokeless and accurate. In addition, liner waste is greatly reduced, increasing shop profitability
VICON Vi-Stream Waterjet
Duct Liner Cutting System
The Vi-Stream Waterjet Liner Cutting System combines the fastest, most accurate liner-cutting technology with VICON's exceptional engineering and software development capabilities to produce huge volumes of liner including but not limited to Armaflex® and K-Flex® insulation.
This table is able to handle any type of liner and is offered with a standard 5’ x 10’ cutting area. Optional table sizes include 5’ x 20’, 6' x 10' and 6' x 20'.

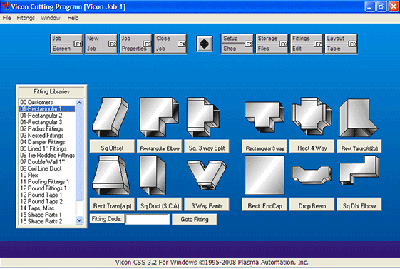

ViSoft
Cutting Software Program for Windows
The ViSoft software is menu-driven and user-friendly. Written and supported by Plasma Automation's experienced team of in-house programming engineers, we are consistently enhancing and updating the Vicon program to continue to bring users the latest and greatest in functionality.
Features include a full array of shapes with user-defined libraries, Super Nest and common line cutting for the ultimate in material utilization, time saving DXF file importing including Auto Kerf and Auto Lead-In, and a true CAD sketch program…to name a few.
Contact us for more information:
Or give us a call at: 303-466-7341
Monday - Friday, 7:00 AM - 5:00 PM, MST
