WHITNEY PLATE PUNCHES

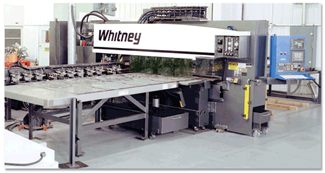

Whitney 3400 XP
Heavy Duty Machine/Affordable Price
Large 60” x 140” (1500 x 3500mm) Working Area
- Heavy duty drives and work clamps move work pieces up to 1,000 lbs (450kg).
- Material moves in X direction, punch and plasma torch move in Y direction. This prevents the work piece from “whipping”, and helps maintain accuracy on even the heaviest work pieces.
- Maximum rapid speeds are achieved in all work piece weights.
More Automation
- Nine Station Tool Changer
- Fast, simple tool changer design
Any size tool fits any station – up to 5.00”/127 mm diameter.
40 Ton Hydraulic Punching
- Double acting hydraulic cylinder keeps punch from “sticking” in work piece.
- Hydraulic clamping and stripping keeps material flat.
- Punches are hydraulically clamped in the cylinder to maintain precise and consistent alignment.
Uses 36TC Tooling Style
-
Tools can be set-up off line – while the machine is running; tooling cartridges are quickly exchanged on the X-axis rail.
- Fast, easy set-up. Springs hold most components in place with few fasteners.
- Most Whitney 36TC tooling is available for fast (same-day) shipment.
State-of-the-Art Plasma Cutting Systems from Hypertherm
- HPR260 or HPR130 HyPerformance systems
-
Highly accurate, laser-like quality
- HPR260 provides incredible cutting speeds in thick material.
- Long Consumable Life
- RAMPAGE! Very economical system – low operating costs
- Either process can be used to process Mild Steel, Stainless Steel, and Aluminum.
Standard Automated Part Removal
-
24” x 60” (600 x 1500mm) drop table removes parts automatically.
- Part detection system ensures that parts are removed.
- Average part removal time of only 2.5 seconds
- An optional conveyor brings parts to the operator as they are cut.
Whitney 4400 MAX
Maximum Duty Machine – for Heavy Applications
Extra Large 96" x 170" (2500 x 4325mm) working area
- Heavy duty drives and work clamps move work pieces up to 4,900 lbs (2200kg).
- Material moves in X direction, punch and plasma torch move in Y direction. This prevents the work piece from “whipping”, and helps maintain accuracy on even the heaviest work pieces.
- Maximum rapid speeds are achieved in all work piece weights.
- Optional X-Axis extension for processing 20 ft (6000mm) parts without repositioning.
- Optional 120" (3000mm) throat machine for extra-wide applications.
Three Retractable Work Clamps
- Work clamps move out of the way when the punch, torch or drill enter the avoidance zones.
- This eliminates dead zones – all of the material can be accessed by the machine.
- Machines with the optional X-Axis extension have four retractable work clamps.
Sixteen station tool changer
- Fast, simple tool changer design
- Any size tool fits any station – up to 3.00”/75mm diameter.
100 Ton Hydraulic Punching
- Double acting hydraulic cylinder keeps punch from “sticking” in work piece.
- Hydraulic clamping and stripping keeps material flat.
- Punches are hydraulically clamped in the cylinder to maintain precise and consistent alignment.
Uses 44TC Tooling Style
- Tools can be set-up off line – while the machine is running; tooling cartridges are quickly exchanged in the tool changer.
- Fast, easy set-up. Springs hold most components in place with few fasteners.
- Most Whitney 44TC tooling is available for fast (same-day) shipment.
State-of-the-art Plasma Cutting Systems from Hypertherm
- HPR260 or HPR130 HyPerformance systems
- Highly accurate, laser-like quality
- HPR260 provides incredible cutting speeds in thick material.
- Long Consumable Life
- RAMPAGE!
- Very economical system – low operating costs
- Either process can be used to process Mild Steel, Stainless Steel, and Aluminum.
Standard automated part removal
- 24” x 96” (600 x 2500mm) drop table removes parts automatically.
- Average part removal time of only 6.0 seconds
- An optional conveyor brings parts to the operator as they are cut.
