Description:

PlasMAX is the solution for your precision plate processing needs. Featuring a high definition plasma torch, dual-side drives, and up to 8' x 30' material capacity, this machine will give you an edge on the competition. Optional oxy-fuel torch and arc-writer marker add flexibility and profitability.

Standard Features

Each Controlled Automation plasma burning table features the highest quality construction and specifications:

• Rigidly constructed aluminum gantry



• Down draft or water table cutting surface
• Windows 7 controller (air conditioning optional)
• Processing parameters for plasma and oxy-fuel operations set automatically
• SICAM advanced plate nesting software
• Automatic torch height control and crash detection
• Easily networked

PlasMAX Features:

• Dual side independent rail axis drive package
• Machine advance speed up to 1,400"/min
• Positioning accuracy:
     +/- .005" (single axis only)
     +/- .010" (coordinate axis)

• Manageable hole property database

Material Capacity:

• Maximum width: 6' to 8'
• Maximum length: 12'
Plasma Torch:
• Maximum material thickness: 1-1/4" (piercing start)
• Minimum material thickness: 20 gauge
Oxy-fuel torch:
• Maximum material thickness: 4"













Description:

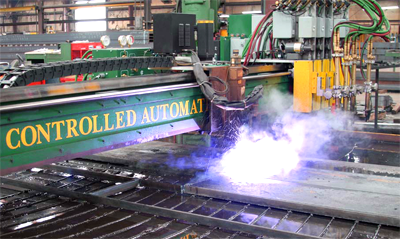

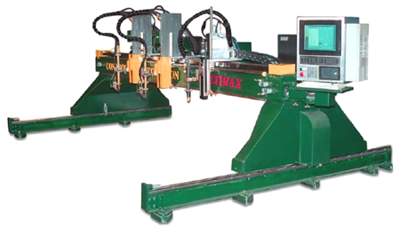

With material capacities of up to 24' x 163' The MultiMAX plasma cutting system is designed for larger application plate processing. The MultiMAX uses Controlled Automation's shape cutting technology to produce top quality thermally cut parts. With a core machine design of strength and stability, fast and responsive controls, along with the advantage of oxy-fuel and high definition plasma, precision parts are created quickly and easily. The MultiMAX has many options to fit your specific needs. You can outfit your machine with up to 8 oxy-fuel torches, 4 plasma cutters and 4 part marking tools. This machine can be customized to fit your exact requirements, with positioning features such as variable travel lengths, widths, service track positions and material handling options.

MultiMAX Features:

• Tubular steel gantry
• Dual-side, independent rail axis drive package
• Machine advance speed up to 1,060" per minute
• Pneumatic band clamping for oxy-fuel stations
• Positioning accuracy:
     +/- .007" (single axis only)
     +/- .015" (coordinate axis)

• Helical drive rack for high precision cutting
• Standard setup for up to 10 cutting tools

Material Capacity:

• Maximum width: 6' to 24'
• Maximum length: 13' to 123'
• Minimum material thickness: 20 gauge
Plasma Torch:
• Maximum material thickness: 1-1/4" (piercing start)



• Max. material thickness: 2-1/2" (production)
Oxy-fuel torch:
• Maximum material thickness: 12"





 Click here to view the MultiMAX brochure













Description:

The ProMAX is Controlled Automation's entry-level, single sided drive plate processing machine. As with all Controlled Automation machines, the ProMAX is built with strength, durability, and accuracy, but boasts having many high end features such as SICAM software, helical drive, automatic height control, and high quality Hypertherm cutting equipment.

ProMAX Features:

The ProMAX includes all of the standard features listed above.

Machine advance speed up to 1,200" per minute

ProMAX Material Capacity:

Machine:
• Maximum processing width: 6' to 8'
• Maximum processing length: 4' to 12'
Plasma Torch
• Maximum material thickness: 1-1/4" (piercing start)
• Maximum pierce: 1-1/2"
Oxy-fuel torch:
• Maximum material thickness: 4"
